Wide tires front and back. Classic Lakester cast aluminum wheels. The iconic steamroller stance, backed by a Milwaukee-Eight® 117 motor. LED lighting all around, Rider Safety Enhancements standard, and fine factory details that honor one of Harley-Davidson's most legendary silhouettes. The 2026 Fat Boy is bold by design.

Specifications

  • Dimensions
    add remove
    • Length:
      93.1 in
    • Seat height, unladen:
      26.6 in
    • Ground clearance:
      4.9 in
    • Trail:
      4.1 in
    • Wheelbase:
      65.0 in
    • Tires, front specifications:
      160/60R18,70V,BW
    • Tires, rear specifications:
      240/40R18,79V,BW
    • Fuel Capacity:
      5.0 gal
    • Oil capacity:
      5 qt.
    • Weight, as shipped:
      668 lbs
    • Weight, in running order:
      694 lb
    • Tire, type:
      Michelin® Scorcher 11 front and rear
  • Engine
    add remove
    • Engine:
      Milwaukee-Eight® 117 Custom
    • Bore:
      4.1 in
    • Stroke:
      4.5 in
    • Displacement:
      117.35 in3
    • Compression ratio:
      10.3:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-into-2 staggered; catalyst in muffler
  • Performance
    add remove
    • Engine torque testing method:
      EC 134/2014
    • Engine torque:
      126.1 ft-lb
    • Engine torque (RPM):
      3000
    • Horsepower:
      103 HP / 77 kW @ 4800 rpm
    • Lean angle, right (deg.):
      25.6
    • Lean angle, left (deg.):
      25.6
    • Fuel economy testing method:
      EU 134/2014
    • Fuel economy:
      47 mpg (5 l/100 km)
  • Powertrain
    add remove
    • Primary drive:
      Chain, 34/46 ratio
    • Gear ratios (overall) 1st:
      9.311
    • Gear ratios (overall) 2nd:
      6.454
    • Gear ratios (overall) 3rd:
      4.793
    • Gear ratios (overall) 4th:
      3.882
    • Gear ratios (overall) 5th:
      3.307
    • Gear Ratios (overall) 6th:
      2.79
  • Chassis
    add remove
    • Front fork:
      Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers
    • Rear shocks:
      Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
    • Wheels, front type:
      Machined, Lakester cast aluminum
    • Wheels, rear type:
      Machined, Lakester cast aluminum
    • Brakes, type:
      Front and rear silver, Split 7-spoke floating rotors
    • Brakes, caliper type:
      4-piston fixed front and 2-piston floating rear

Request Details

Required
Required
Required
Required
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Disclaimer:

*Grand American Touring Finance Offer available only on select new, untitled 2023 H-D Grand American Touring motorcycles financed through Eaglemark Savings Bank and is subject to credit approval. Not all applicants will qualify as the Annual Percentage Rate (APR) will vary based on the applicant’s past credit performance and the term of the loan. Financing offer is available only for up to a 48 month term. For example, a 2023 Street Glide ST motorcycle in Vivid Black with Black Trim with an MSRP of $29,999, no down payment and amount financed of $29,999, 48 month repayment term, and 1.99% APR results in monthly payments of $650.70. In this example, customer is responsible for applicable taxes, title, licensing fees and any other fees or charges at the time of sale. APR is calculated according to the simple interest method. Not valid in conjunction with other offers. This offer is valid during through 03/30/2024 and customer must take delivery by this date. Ineligible models include: Road King Special, Electra Glide Highway King, Road Glide Special Anniversary, Street Glide Special Anniversary, Ultra Limited Anniversary, CVO, Trikes, Icons, and Police Duty Motorcycles. Other terms, conditions, and limitations may apply. Dealer participation may vary. Financing offer is subject to change or cancellation at anytime. See any White’s Family of Dealership Sales Associate for details.

**1,000 or $2,000 Customization Credit incentive valid for in-dealership purchase of Genuine H-D parts, accessories, apparel or licensed merchandise in connection with the purchase of select new, untitled 2023 H-D Grand American Touring motorcycles available and in stock until 03/30/2024. Offer can not be redeemed for cash or cash. Ineligible models include: Road King Special, Electra Glide Highway King, Road Glide Special Anniversary, Street Glide Special Anniversary, Ultra Limited Anniversary, CVO, Trikes, Icons, and Police Duty Motorcycles. Other terms, conditions, and limitations may apply. Dealer participation may vary. Financing offer is subject to change or cancellation at anytime. See any White’s Family of Dealership Sales Associate for details. Offer is subject to change at any time without notice. Additional restrictions apply, see any White’s Family of Dealership Sales Associate for details.

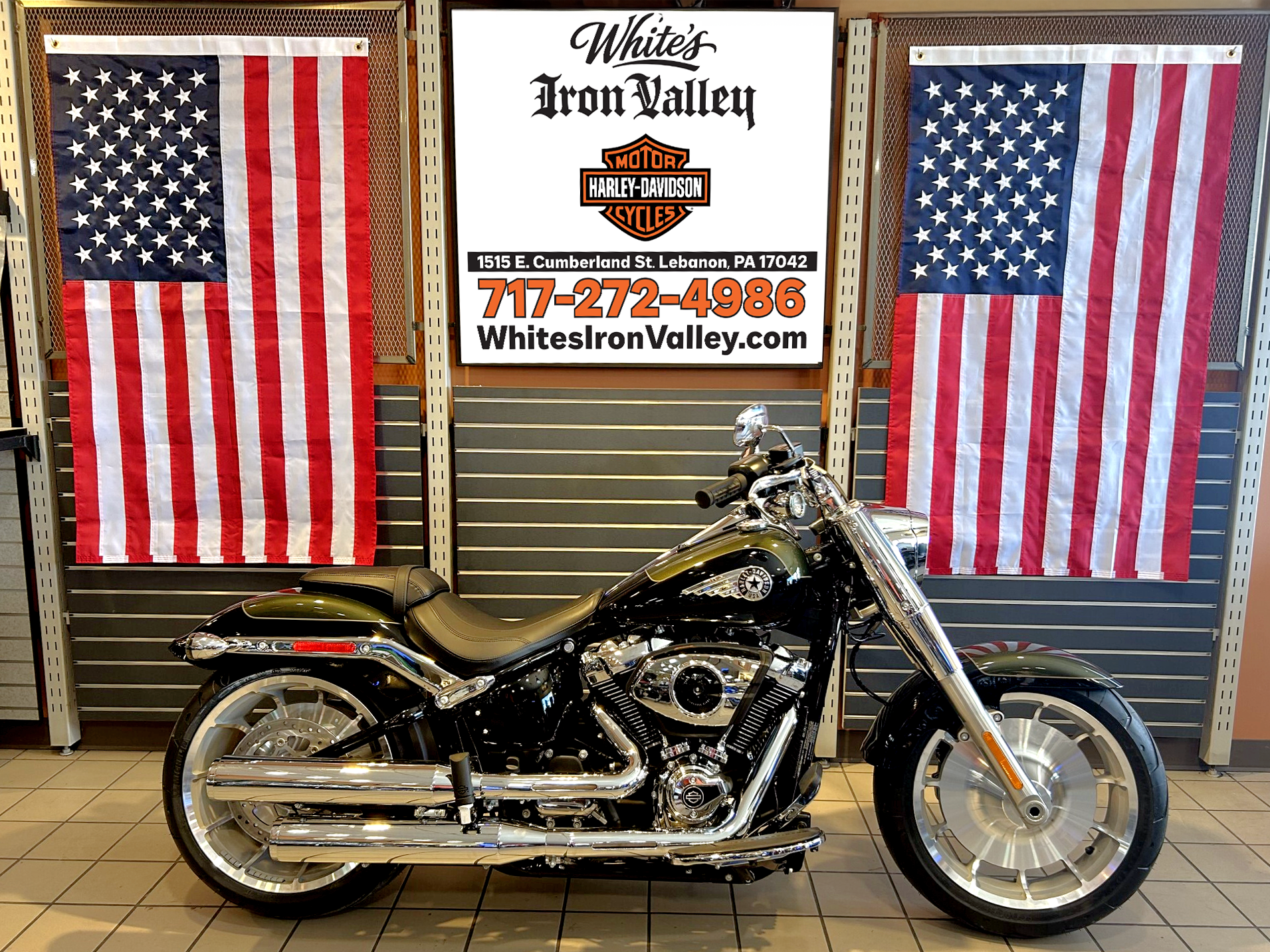

2026 H-D FLFB Softail Fat Boy 117ci
